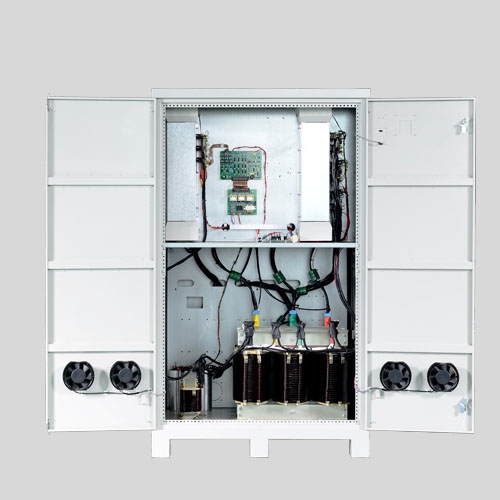

120kw, 150kw, 160kw, 200kw, 250kw, 300kw 3 phase solar inverter

Item No.: SRM005
SRM33 Series is an intelligent multi-function solar inverter, consist of an MPPT solar Controller ( high-power MPPT Controller external installation ), charger, rectifier, inverter, static switch, main control circuit, and display alarm circuit, and so on
Description Specification
PV–Grid–Battery: This series PV inverter design for photovoltaic(PV) and Grid sharing function, solar priority, photovoltaic through the MPPT controller supply to the inverter, and outputs a pure sine AC to loads, meanwhile charging the battery pack; When the solar is not enough to supply the load, it is supplemented by the grid power; utmost use solar energy and grid power, to reduce battery discharge, external battery life span.



  • LCD touch screen for visualization of operation

  • Pure sine wave output for different types of loads

  • External MPPT solar charge controller

  • A wide range, high accuracy and full automatic voltage stabilization

  • Intelligent optimization SOC control and independent three-stage PV charge management for battery to improve charge efficiency

  • Overall protection functions (battery overcharge protection, battery under voltage protection, overload protection, short circuit protection and over temperature protection)

  • Main supply priority mode, saving mode and battery priority mode are all settable, thus making it easy to meet the different application need of users


A PROFESSIONAL FACTORY
Foshan Sunremain Technology Co.,Ltd is an national creative high-tech enterprise, specialized in R&D, manufacturing and marketing of high reliable off grid solar inverters, power inverter mppt solar controllers, ups systems and solutions. Our factory has passed ISO quality management system certification.
We try our best to meet customers' expectations in terms of product quality, customer service and on-time delivery, strictly following the principles of "faithfulness, passion, professional care" and "mutual benefits". “Sunremain”, a believable brand, will provide you with the best quality, the lowest price, punctual shipment and cordial service.
Model SRM33-384-120 SRM33-384-150 SRM33-384-160 SRM33-384-200 SRM33-384-250 SRM33-384-300
Rated Power 120kW 150kW 160kW 200kW 250kW 300kW
INPUT
Phase 3 Phase ( Sharing Neutral Line with bypass input)
Voltage 380VAC, 400VAC or 415VAC
Voltage Range ±25%
Frequency 50Hz or 60Hz ±10%
Soft Start Time 0-100%, 5 seconds
THDi <5%
OUTPUT
Phase 3 Phase 4 Wires (Sharing Neutral Line with bypass input)
Voltage Inverter: 380VAC, 400VAC or 415VAC ±1% (Stable Load)
Frequency 50Hz, 60Hz ±0.5% (in Battery mode)
Frequency Variation <±0.05% (non-synchronized);  <±2% (synchronized with Mains power);
Crest Fact 3:1
Output Waveform Pure Sine Wave
Efficiency (battery priority mode) 93%
Conversion Time <10ms
Protection function Battery overvoltage protection, battery under-voltage protection,
overload protection, short circuit protection, over-temperature protection etc.
BATTERY & CHARGER
Battery Voltage 384VDC
Floating Charging Voltage 408VDC
Charge Mode Constant current and constant voltage charging modes
AC Charge Current 5A~30A adjustable
External MPPT SOLAR CHARGER
Maximum PV Array Power 420-550VDC
Maximum Solar Charging Current 200A Optional
Maximum Efficiency 98%
Physical
Display Touch LCD Screen
Dimension, D*W*H(mm) 900*1100*2000 900*2300*2000
Net Weight (kgs) 700 700 1000 1200 1450 1650
Operating Environment
Cooling method Air-cooled
Humidity 5% to 95% relative humidity (Non-condensing)
Operating Temperature -10-55℃
Remarks: Product Specifications are subject to change without further notice
