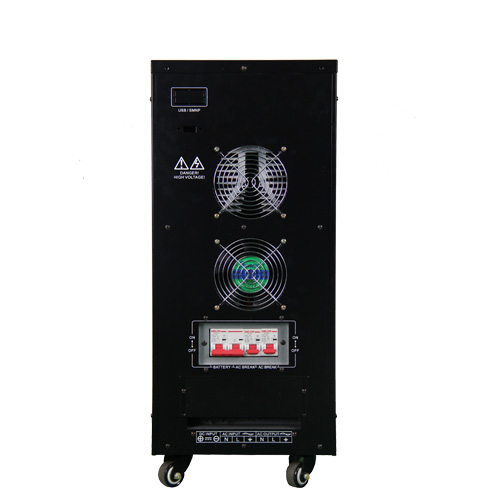

10kw 15kw 20kw 25kw 30kw 40kw single phase power inverter

Item No.: SRM010
Low frequency pure sine wave combined inverter & A/C charger SRL11 8KW-40KW. Mainly for home and office applicances such as TV, refreigerator, fans lights and computers etc.
Description Specification

1. With SPWM technology controlled by CPU, pure sine wave output

2.  Reliable with dynamic current loop control technology

3.  Auto detect and convert 50/60HZ output

4. Applying to capacitive load, inductive load and nonlinear mixed load

5. Strong overload ability, strong resists shocks ability, can start with full load

6. High efficiency, low noise, smokeless, no fire hazard

7. Automatic switch, realize unattended function

8. Communication function: USB interface/SNMP remote control/GSM SMS function

9. AC priority or DC priority selectable

10. Stable performance, more safe and reliable, long service life

11. Perfect protection function: input over/low voltage, overload, short circuit, low battery voltage, over temperature

oshan Sunremain Technology Co.,Ltd is an national creative high-tech enterprise, specialized in R&D, manufacturing and marketing of high reliable off grid solar inverters, power inverter mppt solar controllers, ups systems and solutions. Our factory has passed ISO quality management system certification.
We try our best to meet customers' expectations in terms of product quality, customer service and on-time delivery, strictly following the principles of "faithfulness, passion, professional care" and "mutual benefits". “Sunremain”, a believable brand, will provide you with the best quality, the lowest price, punctual shipment and cordial service.
MODEL SRL11-8K SRL11-10K SRL11-12K SRL11-15K SRL11-20K SRL11-25K SRL11-30K SRL11-40K
Rated Power 8KW 10KW 12KW 15KW 20KW 25KW 30KW 40KW
Instant Power Three Times
DC Input
DC Voltage 96/192V 192/240V 240/360V 360V
Battery Type All kinds of batteries
Battery No. 12V Battery: 8pcs (96V) / 16pcs (192V) / 20pcs (240V) / 30pcs (360V)
AC Input
Efficiency ≥ 90%
Input Voltage 220V (175-255V) / 110V (87-127V) (L+N+G)
Frequency 50Hz/60Hz ±10% (self-adaption)
Output Voltage 220V / 110V
AC / DC Switch Time 0MS
Invert Output
Frequency 50/60Hz ± 0.1%
Output Voltage 220V / 110V ± 1%
Output Waveform Pure Sine Wave
THD ≤ 3% (Linear Load)
AC charging
Charge current 15A Standard ( 0-30A customizable)
Overcharge Protect Voltage 124V (96VDC) / 248V (192VDC) / 310V (240VDC) / 465V (360VDC)
Floating Charge Voltage 116V (96VDC) / 232V (192VDC) / 290V (240VDC) / 435V (360VDC)
Low Voltage Protection Voltage 84V (96VDC) / 168V (192VDC) / 210V (240VDC) / 315V (360VDC)
Protection Overload, Short circuit, High/low voltage, Over temperature
Overload Capacity 120% 30S, 125% 10S, 150% 0S
Fault Keep Alarm Sound
Monitoring Interface USB/RS232/ANMP (Optional)
Display LCD/LED+LCD (Optional)
Working mode 01: AC Priority Mode, 02: Energy-saving Mode, 03: Solar Inverter Mode User can select 01, 02, 03, Working mode via Function Key
Humidity 0% to 95% relative humidity (Non-condensing)
Operating Temperature 0-50℃
Storage Temperature -15-60℃
Noise ≤ 30dB (within 1 meter)
Net Weight (Kg) 62 69 77.5 84 108 118 130 149
Dimension (L*W*H)mm 580*290*675 690*360*870
Remarks: Product Specifications are subject to change without further notice
